In industries where safety, reliability, and leak-proof performance are critical, Double Block and Bleed Valves (DBB valves) play a pivotal role. These specially designed valves are engineered to provide isolation for maintenance, prevent contamination, and ensure personnel safety, especially in high-pressure applications. From oil and gas pipelines to chemical processing units, DBB valves are integral to safe and efficient operations.

What is a Double Block and Bleed Valve?

A Double Block and Bleed Valve is a type of isolation valve that consists of two seating surfaces (blocks) and a central bleed mechanism. When closed, the two seating elements isolate the flow on both sides, while the bleed valve between them can be opened to verify there is no leakage past the first seal. This setup ensures complete isolation and is particularly essential in applications that demand zero leakage or positive pressure verification.

These valves are commonly used as a double isolation and bleed system, offering superior operational safety compared to standard single-isolation valves.

Working Principle and Design

The core working principle of a DBB valve lies in its dual sealing. When both isolation valves are closed, the area between them is "bled" using the bleed valve. If the bleed port registers pressure, it indicates a leak in one of the seats — giving early warnings of seal failure.

There are two main DBB valve designs:

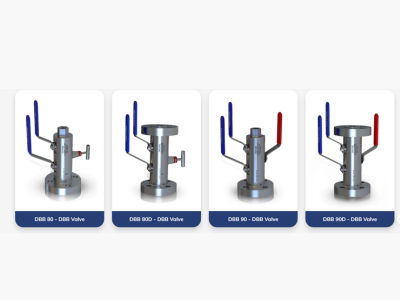

1. Single-Body DBB Valve: Both block valves and the bleed valve are integrated into one compact body. This design minimizes leakage paths and weight, and is widely used in confined spaces like offshore platforms.

2. Twin-Block Valve System: This consists of two separate block valves installed in series with a bleed valve between them. Though bulkier, this traditional setup is still used where modular systems are preferred.

Applications Across Industries

DBB valves are indispensable in several high-stakes industrial operations:

1. Oil & Gas Pipelines: Used for isolating pipeline sections during maintenance or emergency shutdowns.

2. Refineries and Chemical Plants: Prevents cross-contamination of fluids and allows safe instrumentation maintenance.

3. Power Plants: Ensures safe isolation of steam and fluid lines during servicing.

4. Offshore Platforms: Compact DBB valves help reduce weight and footprint without compromising on safety.

In all these applications, the ability to verify isolation through the bleed mechanism enhances system control and operational reliability.

Key Advantages of DBB Valves

Choosing Double Block and Bleed Valves offers several operational benefits:

1. Enhanced Safety: Dual isolation reduces the risk of accidental fluid release or hazardous exposure.

2. Reduced Downtime: Maintenance can be performed without shutting down entire systems.

3. Compact and Space-Saving: Especially in the case of single-body DBB valves, the design is ideal for installations with space constraints.

4. Cost-Effective: Reduces the need for complex piping systems by combining multiple functions into a single valve body.

5. Improved System Integrity: The central bleed ensures that any leakage past seals is quickly detected and addressed.

Types, Materials, and Industry Standards

DBB valves are available in several types, such as floating ball DBB valves and trunnion-mounted DBB valves, depending on pressure requirements and flow characteristics.

Common materials include:

1. Stainless Steel

2. Carbon Steel

3. Duplex and Super Duplex

4. Alloy 20, Hastelloy (for corrosive media)

Valves are manufactured in various sizes and pressure ratings to meet diverse operational needs and are generally compliant with industry standards such as API 6D, ANSI, ASME B16.34, and ISO 10497 for fire testing.

Conclusion

Double Block and Bleed Valves have become a cornerstone of fluid isolation systems in critical industries. Their ability to provide verifiable shutoff and enhance operational safety makes them a preferred choice across sectors. Whether it’s maintaining the integrity of a pipeline or safely isolating instrumentation, DBB valves deliver performance, reliability, and peace of mind.

If you are seeking a reliable and high-quality solution, Freture Techno Pvt. Ltd. stands as a leading Double Block and Bleed Valve manufacturer in Mumbai, India. With a focus on innovation and precision engineering, Freture Techno offers DBB valves tailored for demanding industrial environments.
